Downhole drilling tool downhole motor type 7LZ89*7.0

FOB Reference Price:Get Latest Price
$1,500.00 - $1,800.00 / Piece | 1 Piece/Pieces (Min. Order)
Model Number:
7LZ89X7.0
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 30 >30
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China
Brand Name:
JW
Type:
downhole motor
Machine Type:
Drilling Tool
Certification:
API
Material:
Carbon Steel
Processing Type:
Forging
Use:
Well Drilling
bit size:
107-121mm
connected thread:
2 3/8''reg
lobe:
7:8
stage:
3.8
flow rate:
170-490 lpm
rotary speed:
74-215 rpm
working pressure loss:
3.04 mpa
output torque:
952 N.m
max pressure loss:
4.29 Mpa
output power:
28 kw
Supply Ability
Supply Ability:
300 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Downhole drilling tool will shipped by standard export packing
Port
Tianjin Port
Lead Time :
Quantity(Pieces) 1 - 30 >30
Est. Time(days) 15 To be negotiated
Product Description



Specifications About Downhole drilling tool

Downhole motor is a kind of downhole dynamic drilling tool upon the power of drilling mud. Mud stream from the outlet of mud pump flows through a by-pass valve into the motor. This stream produces pressure loss at both inlet and outlet of the pump, to push the rotor into rotating, and to transmit the torque and speed onto the bit. The downhole motor property mainly depends upon its property parameters.
ADVANTAGES OF DOWNHOLE MOTOR
Increased rate of penetration.
Better hole deviation control.
Reduction in drill string failure rate.
Reduction in wear and tear of the swivel, Kelly, and rotary drives.
Reduction in fuel cost, since compared to rotary drilling, less energy is required to power a downhole motor.
1. Material: High manganese steel
2. Standard: API
3. Features: Big torque, high effective, wide flow rate range, running stable and long using time.
4. Specifications: Fit for 3 1/2"--17 1/2" well hole, including  straight body, single- bent and

double-bent construction.



Model

Bit size

mm

threadlobestage

flow rete

lpm

rotary speed

rpm

working pressure loss

Mpa

output torque

N.m

output power

kw

5LZ89X7.0-4114-1492 3/8reg5:64255-766108-3253.2108047
7LZ89X7.0-3.8114-1492 3/8reg7:83.8170-49074-2153.0495228

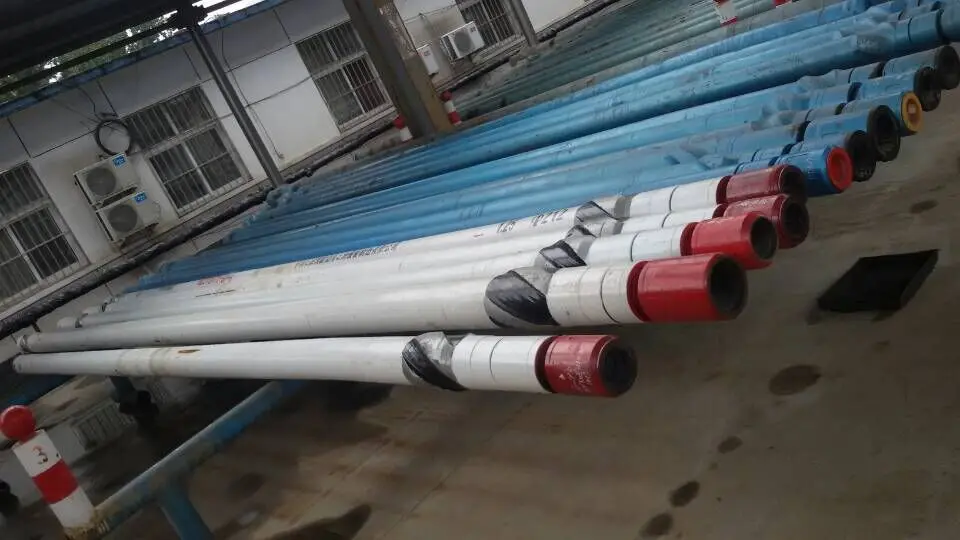

Downhole drilling tool Pictures:








Packaging & Shipping

 Because of the length just can ship them by seaQQ20170720145046.jpg





Our Services



Cangzhou JW Petroleum Machinery Co.,Ltd have a sound after-sales service system, every clients bought from JW will have a file, which records every downhole motor’s model that the customer purchased from JW. And after sale we will track the use of each one, and help clients to deal with every problem, so dont worry to buy, we will give you high after-sales service.




FAQ

 Are you Manufacture or Factory?
 Yes we are and from Hejian City Cangzhou city Hebei Province China.
 How about the quality and supply ability?

We can supply you with 300 pcs downhole motor for a month.
What the MOQ?
1pc.
How to place an order?
1) Inform size and model

2)angle of slope

3)quantity
What is the Pament?
 T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. We also can accept L/C AT SIGHT if the quantity is large.



Company Information



Cangzhou JW Petroleum Machinery Co.,Ltd is located in Hejian City, with RMB20,300,000 registered capital. Hejian city is one of locations of well know oilfield Huabei, rich resources and technical supports propelled the establishment and de-velopment of JW.

We specialize in researching and production of downhole motor, tricone bit, PDC bits, HDD rock reamer and PDC reamer. Application fields includes oil well drilling, gas well drilling, geothermal well drilling, mining, geological survey, hydrographic survey, water well drilling, HDD pipelines projects, foundation projects.



Our products and services have covered domestic large oilfields, and exported to many countries and regions like Middle East, North America, South Asia,Central Asia, Russia and so on which help the company to accumulate rich international experience and build a steady and professional sales network and service system.



With high-end equipment in the world, all of our activities are strictly complying with API specifications and ISO 9001:2008 standards, with professional technicists, we commit ourselves to provide optimized solutions for various of applications and requirements, customized solutions for specific projects is our working direction, we have same ultimate aim with customers---‘lower the cost of drilling per meters, achieve the most cost effective’.
